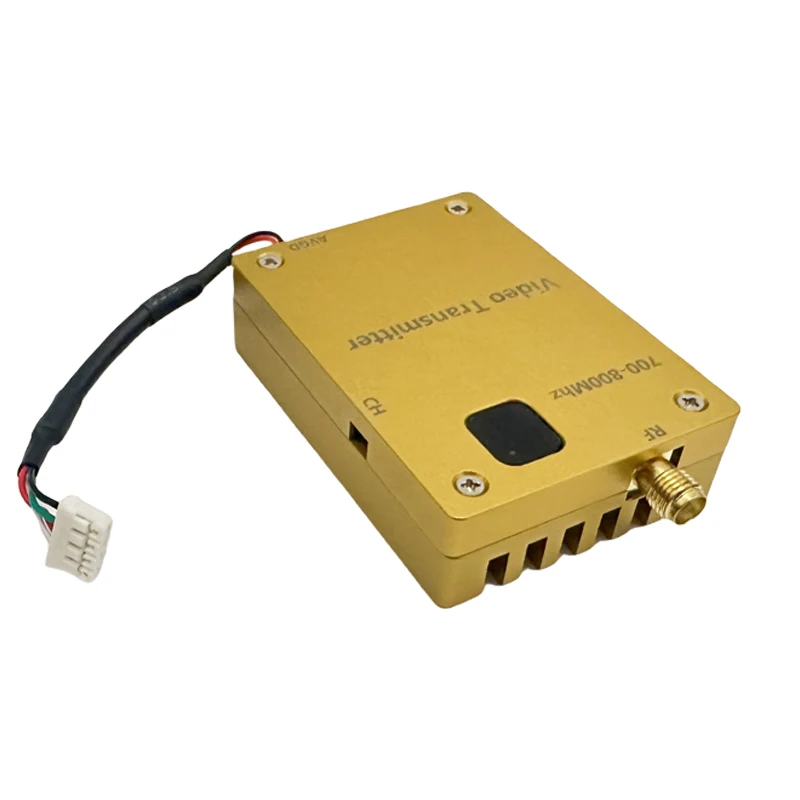

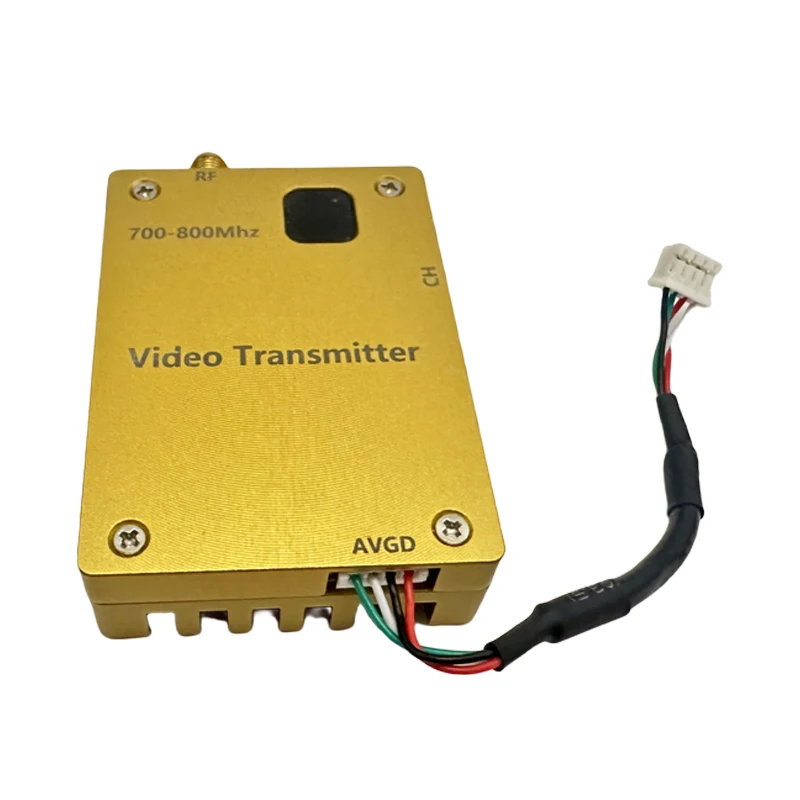

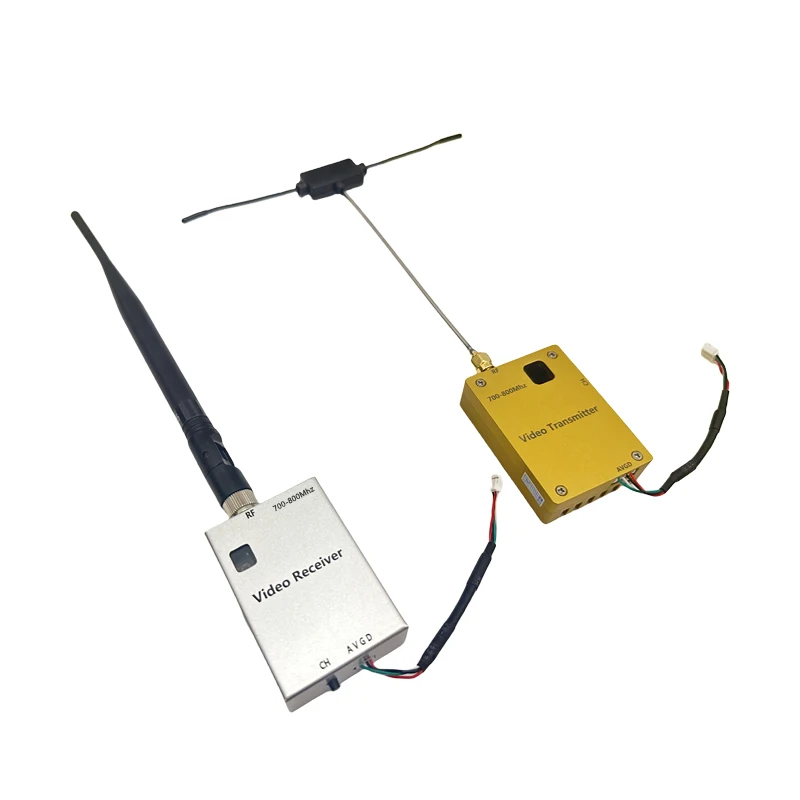

600Mhz FPV/Drone Video Transmitter 40km VTX and VRX Wireless Video Link with 8 Channels Ultra Long Range

Name: 600Mhz FPVDrone Video Transmitter 40km VTX and VRX Wireless Video Link with 8 Channels Ultra Long Range
Brand: DingShen
Price: 1 USD

Brand Name : DingShen

Model Number : DS-500TX4W

Place of Origin : Guangdong China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 200 per month

Delivery Time : 5-8 working day

Packaging Details : export standard packing

Type : wireless video transmission

Frequency : 600Mhz~700Mhz

Power : 12V DC

RF power : 4 Watt

Channel : 8 channels

Weight : 60G

Dimensions (L * W * H) : 72*46*17mm

Contact Now

600Mhz FPV/Drone Video Transmitter 40km VTX and VRX Wireless Video Link with 8 Channels Ultra Long Range

VTX Specification:

Model number:	DS-600TX4W
Voltage	DC 12V
Current	700mA
Modulation	FM
Frequency	460Mhz~880Mhz
Channels	8 channels
Frequency band	500Mhz: (460Mhz, 480Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz). 600~700Mhz: (600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz). 700-800Mhz: (740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz)
Transmit Power	4 watt
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Temperature	-20℃ ~ +70℃
Antenna port	SMA
Transmitter Weight	60g
Dimensions (L * W * H)	724617mm

600Mhz FPV/Drone Video Transmitter 40km VTX and VRX Wireless Video Link with 8 Channels Ultra Long Range

600Mhz FPV/Drone Video Transmitter 40km VTX and VRX Wireless Video Link with 8 Channels Ultra Long Range Images
